VAPOR WITH SPRAY DEGREASERS

vapor with spray degreaser

Reliance manufactures a complete line of Vapor and Spray Degreasing Systems uniquely designed for:

  • Vapor Cleaning of Parts

  • Supplemented by Spray Cleaning

  • Optional Automated Spray Manifolds

  • All ULTRA units include Reliance's standard 1 year new equipment warranty and comprehensive training.

PDF - Vapor & Spray Degreaser Product Line

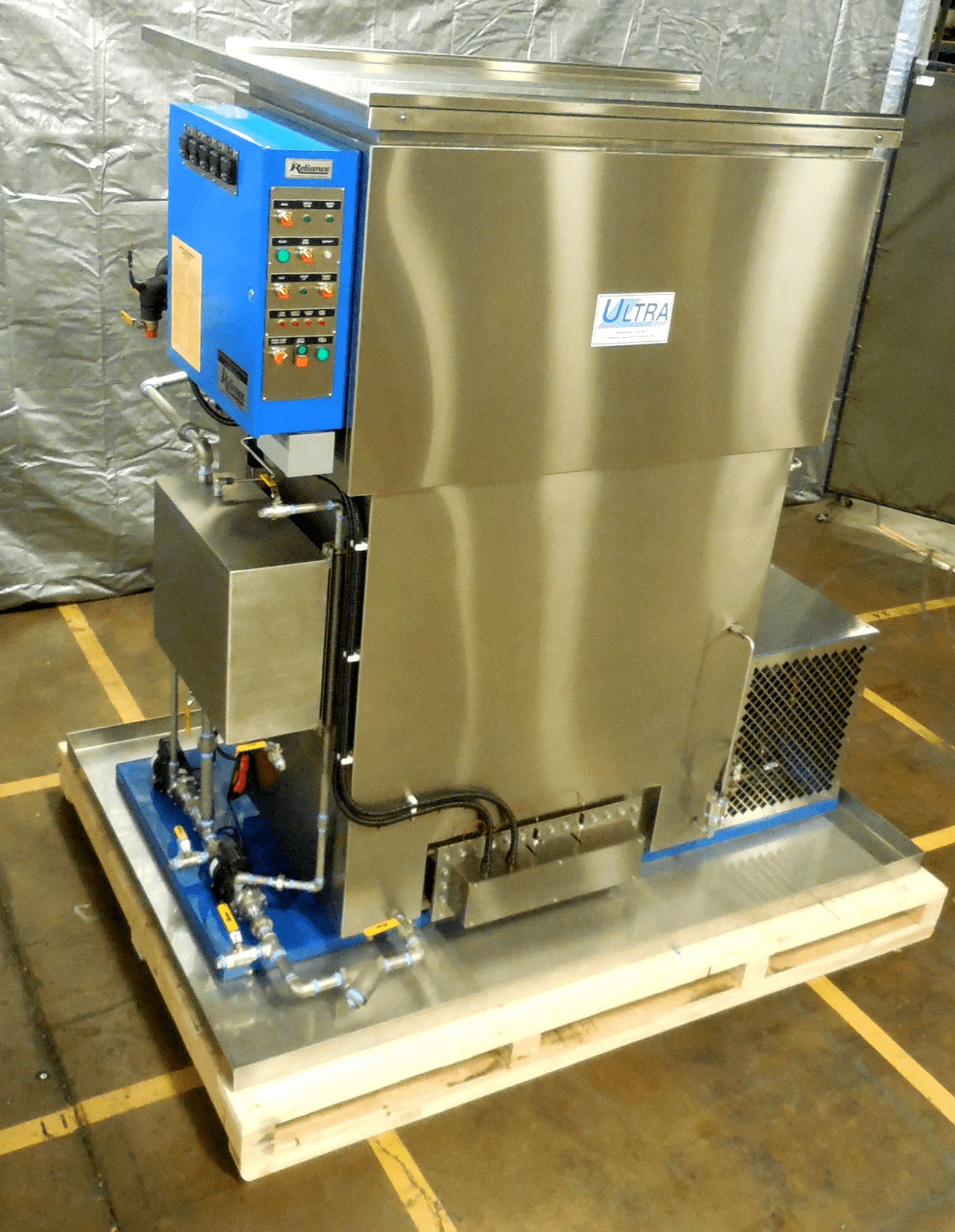

ULTRA™ Vapor and Spray Degreasers
ULTRA™ MODEL STANDARD Vapor Zone (Dimensions) STANDARD Solvent Requirement OPTIONAL Vapor Zone Widths OPTIONAL Vapor Zone Depths
VS-2 24”L x 12”W x 18”D 17 gallons No custom widths No custom depths
VS-2418 24”L x 18”W x 20”D 17 gallons No custom widths No custom depths
VS-4012 40”L x 12”W x 20”D 26 gallons No custom widths No custom depths
VS-4416 44”L x 16”W x 30”D 34 gallons No custom widths No custom depths
VS-3 36”L x 24”W x 24”D 51 gallons 30” or 36” Wide 30”, 36” or 42” Deep
VS-4 48”L x 24”W x 24”D 61 gallons 30”, 36”, 42” or 48” Wide 30”, 36” or 42” Deep
VS-5 60”L x 24”W x 30”D 71 gallons 30”, 36”, 42” or 48” Wide 24”, 36”, or 42” Deep
VS-6 72”L x 24”W x 30”D 81 gallons 30”, 36”, 42” or 48” Wide 30”, 36”, 42” or 48” Deep
VS-7 84”L x 24”W x 30”D 91 gallons 30”, 36”, 42” or 48” Wide 30”, 36” 42” or 48” Deep
VS-8 96”L x 24”W x 30”D 101 gallons 30”, 36”, 42” or 48” Wide 30”, 36” 42” or 48” Deep

ADVANTAGES of the ULTRA™ Vapor and Spray Vapor Degreasers

Our ULTRA™ Model VS Series degreasers feature vapor and spray degreasing. These units are an excellent option for large parts that are odd sizes or simple geometries that need a fast cleaning. All of these units are heavy load and high production work horses that will efficiently support your production throughput needs.

  • Multiple Spray Options - from foot operated spray wands to spray manifolds for additional cleaning power.

  • Larger Spray Reserve Tanks - to ensure spray systems continually operating.

  • Large Tank Access Clean-Out Door - Allows sump access for maintenance though the clean-out door rather than over the tank's top.

  • Field Maintenance Ease - Simple to change and replace key components, such as heating elements and no climbing under the tank to fix ultrasonic generators or flipping the degreaser over to evaluate.

  • Fast and Cost Effective - the ULTRA VS gets the dirt out fast, thus the cleaning process is enhanced significantly, reducing cycle time and increasing throughput.

  • Reliable Indicators - Solvent Low-Level Float Safety; Water Flow Safety; Vapor Up Safety Control Indicator; "Spray Ready" indicator light; zero coil "Defrost" indicator light.

  • Two Level Heat - "Hot Shot" Configuration for quick start up.

  • High Volume Condensate Water Separator - System feeding spray reservoir for optimal spray capacity.

  • Operator's Manual.

  • Freeboard Ratio: > 100%.

  • Reliance Warranty.

At Reliance, we go the extra mile to match you with the
right vapor degreasing equipment and cleaning process for your application.

ULTRA™ SERIES Low Emission Vapor Degreasers

Large ULTRA vapor degreasers
Mid-size ULTRA vapor degreasers
Small ULTRA vapor degreasers

Customer Satisfaction Testimonial:

"We are pleased with the Ultra VS-3 vapour degreaser. The new machine is everything we expected and received.”
~ Brad @ Raytheon

Advantages of Automated Basket Handling Systems with Touch Screen Controls

Basket Handling Elevator BHE

Automated Basket Handling Systems:

  • Minimize worker solvent exposure

  • Save on labor costs

  • Provide consistency in processing parts

BHS Lift (Horizontal &Vertical Movement)

Spray Manifolds Enhance Vapor Zone Cleaning

  • Spray manifolds can be added to vapor only units to give an additional layer of cleaning to blind holes and complex geometries.

  • Spray manifolds can customized to meet your cleaning needs (# of spray nozzles and/or type of spray pattern).

  • Large spray reserve tank ensures availability of solvent for spray

  • The manifolds automatically turn on and off as part of the basket processing automation recipe…if automation is a part of the system.

Reliance Specialty Products, Inc.
The Only OEM Company That Manufactures Both Vapor Degreasing Equipment and Vapor Degreasing Solvent

Reliance Specialty Products, Inc. is known throughout the industry as vapor degreasing experts because we manufacture both the ULTRA™ vapor degreasing equipment line and AeroTron™ vapor degreasing solvents which are drop-in TCE and nPB replacement solvents.

ULTRA™ Vapor Degreaser FEATURES:

  • Minimize worker solvent exposure

  • Enhance solvent containment

  • Provide state of the art control systems

  • Allow easy field maintenance

  • Automate basket handling for consistent parts processing

  • Adept for the use of non-flammable solvents

ULTRA vapor degreasers
