Ultra Model VS-2418 LE Vapor Degreaser

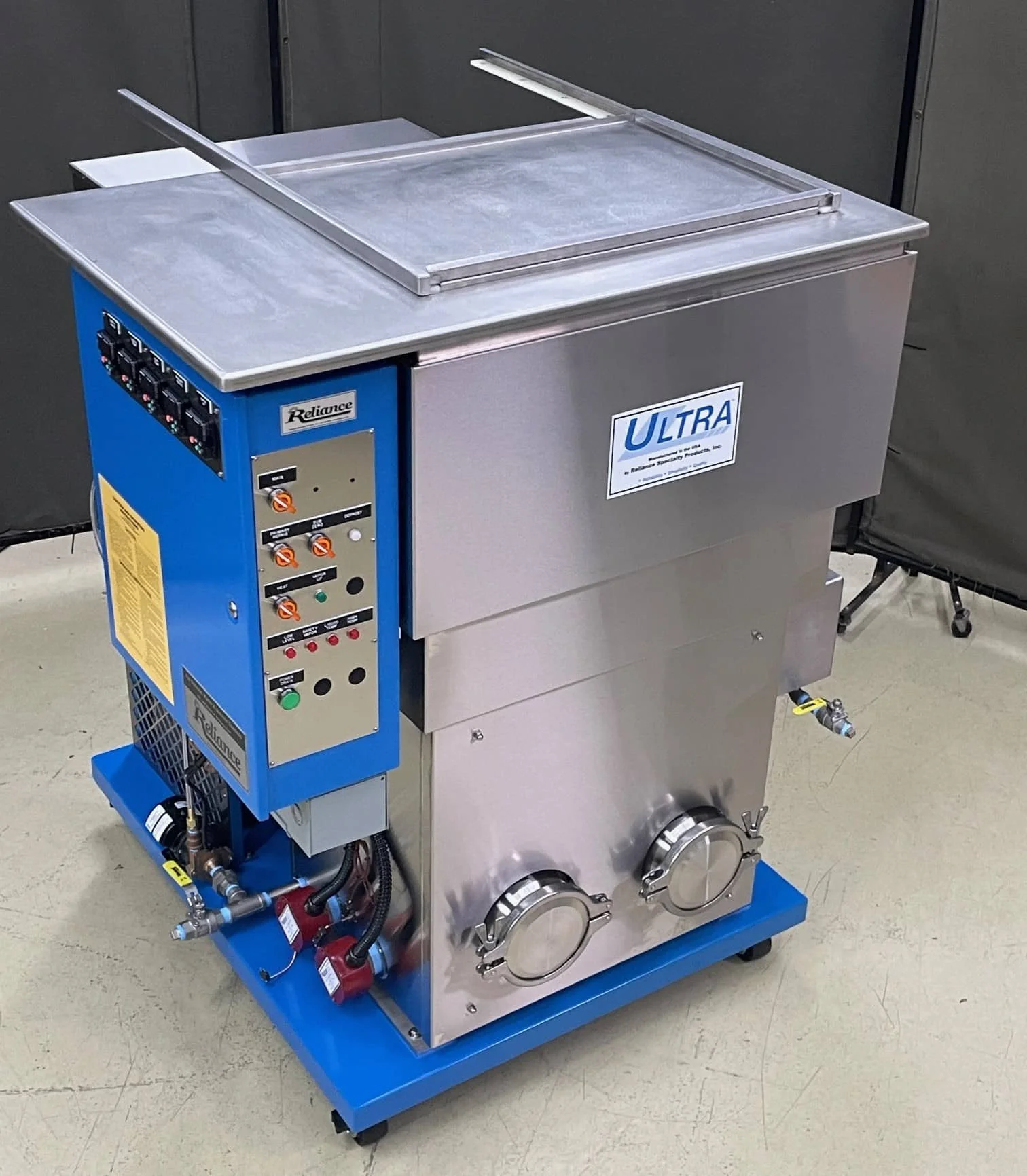

ULTRA™ VS-2418 LE vapor with spray degreaser

ULTRA™ Model VS-2418 LE Features:

Small yet mighty cleaning capacity - Vapor with Spray Unit
Large 24”L x 18” Wide x 20” Deep (top to bottom) Vapor Zone
Easy Maintenance
Spray Wand for Additional Cleaning
Excellent Solvent Containment and NESHAP Compliant
Reduced Solvent and Operating Costs
Small Foot-Print
On Casters for Mobility
Compatible with Variety of Solvents
>100% Freeboard

View / Download ULTRA™ VS-2418 LE Feature Data Sheet

Reliance provides exceptional customer service

ULTRA™ VS-2418 LE - Tank Interior with Coils

ULTRA™ VS-2418 LE - Filtration with Gauge

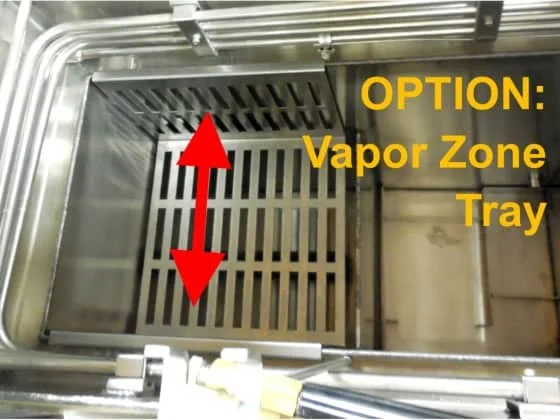

ULTRA™ VS-2418 LE - Optional Vapor Zone Tray

ULTRA™ VS-2418 LE Compared to Larger ULTRA™ 2012LE

ULTRA™ VS-2418 LE Unit Specifications
Dimensions
Vapor Cleaning Zone	24”L x 18”W x 20” Deep
Boil Tank	24”L x 18”W
Footprint Dimensions (without casters)	51”L x 48”W x 62” High
Features
Vapor Cleaning	Vapor Cleaning Zone above Boil Tank
Spray Cleaning	Hand Spray Wand and Large Spray Reserve Tank
Filtration of Tank	Continuous Filtration
Boil Tank Access Door	“Easy Ring” Clean-Out Door System
Solvent Containment
NESHAP Compliant Features	Yes
Primary Condensing Coil	Refrigerated Stainless Steel
Low-Temp Freeboard Condensation Coil	Refrigerated Finned Stainless Steel operating at -10F to -20F
Freeboard Ratio	>100%
Horizontal Slide Lid	Manual
Watlow Solvent Safety and Temperature Controls	HTC, LTC, SVC, VU, RT and Low-Level Float
Monitoring of the Vapor Degreaser’s Correct Operating Condition	Comprehensive Indicator Light System and Temperature Displays
Automated Part Cleaning
BHE Automated Basket Handling System	Yes—Optional
Operating Requirements
Solvent Operating Requirement	17 Gallons
Typical Electrical Service	208V or 240V / 1 Phase

ULTRA™ VS-2418 LE (Low Emission) Features

Foot Activated Spray Lance System

NESHAP Compliant Vapor Degreasing System
Solid Tank Construction - Heavy gauge 304 stainless steel
Stainless Steel Primary Condensing Coil - New Copeland refrigeration system operating with R134A refrigerant
Sub-Zero Temperature Condensing Coil - Finned stainless steel with Copeland R404A refrigeration system operating to approximately -20F to supplement primary condensation system. Includes defrost cycle, low-temperature condensing coil with condensate trough
Foot Activated Spray Lance System - mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand
High Volume Condensate Water Separator - feeding spray reservoir
Digital Display Safety Control Panel - including HTC, LTC, SVC, VU, RT
WATLOW Temperature Safety Limit Controls with digital display on control panel; temperature set point as well as actual temperature – SVC (Safety Vapor Control), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)
Solvent Low-Level Float Safety
Control panel with solvent low level float fault indicator lights (for easy identification of operating fault conditions). “Spray Ready” indicator light and zero coil “Defrost” indicator light, illuminated on/off switches for easy identification of system condition “Heat”, “Filtration”, Main Power”, “Refrigeration” and “Low-Temp Refrigeration”
Manual Horizontal Slide Lid - for solvent containment
Casters - for easy movement
Electric Immersion heat - "Screw-In" type elements for easy replacement
Two Sump Access Clean-Out Doors - Boil sump and immersion sump access for ease of maintenance through the clean-out door rather than over the tank top
One (1) stainless steel workbasket
Comprehensive 1-Year Manufacturer’s Warranty
ULTRA™ VS-2418 LE Operator’s Manual

Primary & Sub-Zero Coils Running Standard Refrigerant

Primary and Sub-Zero Coils Running Standard Refrigerant

Simple Control Safety Panel

ULTRA™ VS-2418 LE Benefits

Simple engineering and stoutness of design for durability and ease-of-maintenance
Excellent training - start-up, shut down, maintenance and good solvent cleaning work practices
Easy to support in the field with accessible heating elements, clear temperature read-outs, sophisticated indicator light system, and updated refrigeration systems using standard refrigerant
Cost effective operation and maintenance
Compact footprint
Effective with a variety of non-flammable solvents, including chlorinated, brominated and fluorinated
State-of-the-art engineering based on a best practices for simplicity, field supportability and reliability
Minimal Solvent Emissions and Reduced Operating Costs due to NESHAP Compliant coils

Electrical Panel with Sophisticated Temperature Display and Indicator Light System

ULTRA™ VS-2418 LE Options

Increased tank depth for increased vapor zone
Electric horizontal slide lid
Additional baskets
Solvent Containment Spill Tray
Choice of vapor degreasing solvent including EnTron™, EnTron-Aero™, GenTech™ and AeroTron™
Automated Vertical Basket Handling System

View / Download Automated Basket Handling System Specification Sheet

ULTRA™ VS-2418 LE: Compatible with Non-Flammable Solvents

Simple Change over - The ULTRA™ VS-2418 LE is engineered to be compatible with a variety of solvents and in most cases a simple clean out and change of temperature settings is all that is required.
>100% Freeboard — helps with vapor containment - so using chlorinated solvents like TCE, TCA, MCL and PERC is still possible.
Sub-Zero refrigeration coil - in addition to the primary refrigeration system, makes using brominated solvents like GenTech™, EnTron™ and EnTron-Aero™ or Modernized chemistries solvents such as AeroTron - an economical alternative.
Manual Slide-Lid - provides additional solvent containment for the new generation of solvents like AeroTron™ and helps reduce evaporation.

Solvent for General Metal Finishing

Boeing Approved nPB Solvent

Modern Solvent Precision Degreasing

Let Our Experts Assist You In Your Project

Reliance is a total vapor degreasing solutions provider

Reliance Specialty Products' core business is vapor degreasing solvent cleaning. We research, develop, manufacture, and expertly support advanced solvent cleaning products and metal finishing products.

We manufacture vapor degreasing solvents and low-emission NESHAP Compliant vapor degreasing equipment that provide years of quality, reliability and productivity.
