Ultra Model 2424 LE Vapor Degreaser
ULTRA™ Model 2424 LE Features:
Ultrasonic Immersion Sump - 24”L x 24”W x 24”D
Easy Maintenance
Spray Wand for Additional Cleaning
Excellent Solvent Containment and NESHAP Compliant
Reduced Solvent and Operating Costs
On Casters for Mobility
Compatible with Variety of Solvents
120% Freeboard
Vapor degreaser demonstration of a basket handling system on a large ULTRA™ 2424 LE ultrasonic immersion system. The basket loads at the right side of the tank, moves through cleaning cycle and unloads on the left side of the tank.
ULTRA™ 2424 LE - Tank with Manual Slide Lid
ULTRA™ 2424 LE - Overall with BHS
ULTRA™ 2424 LE - Tank Interior
ULTRA™ 2424 LE - Primary and SubZero Refrigeration

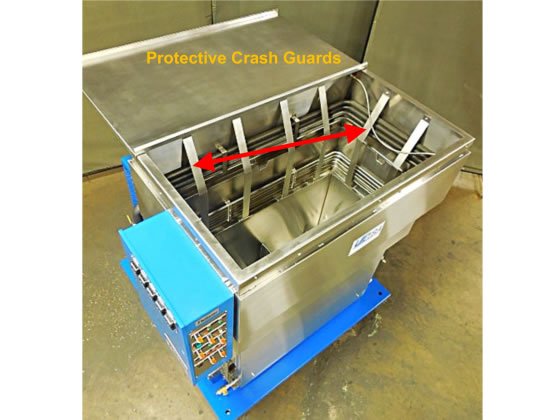

ULTRA™ 2424 LE - Crash Guards
ULTRA™ 2424 LE - Filtration
ULTRA™ 2424 LE - Filtration with Gauge

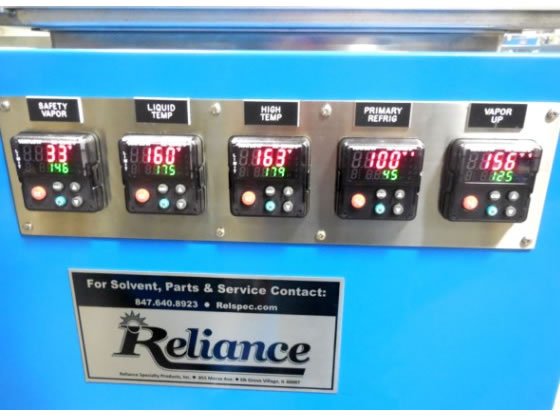

ULTRA™ 2424 LE - Digital Safety Limit Controls
ULTRA™ 2424 LE with 2000 Watts of Ultrasonics
ULTRA™ 2424 LE - Large Clean Out Door
ULTRA™ 2424 LE with Distillation System
ULTRA 2424 LE Vapor Degreaser with Powered Cover
ULTRA™ 2424 LE with Automated BHS
ULTRA™ 2424 LE - Power Pump Out
AeroTron™ Vapor Degreasing Solvent
| ULTRA™ 2424 LE Unit Specifications | |
|---|---|
| Dimensions | |
| Ultrasonic Cleaning Tank | 24”L x 24”W x 24” Deep |
| Vapor Cleaning Zone | 48”L x 24”W x 16” Deep |
| Boil Tank | 24”L x 24”W |
| Footprint Dimensions (without casters) | 90”L x 80”W x 82” High |
| Features | |
| Ultrasonic Cleaning | 1500 Watts of Power at 40 kHz Field replaceable components. Adjustable Power and Sweep. |
| Vapor Cleaning | Vapor Cleaning Zone above Boil Tank and Ultrasonic Tank |
| Spray Cleaning | Hand Spray Wand and Large Spray Reserve Tank |
| Filtration of Ultrasonic Tank | Continuous Filtration |
| Boil Tank Access Door | Large Access Door System |
| Spray Wand | Yes |
| Solvent Containment | |
| NESHAP Compliant Features | Yes |
| Primary Condensing Coil | Refrigerated Stainless Steel |
| Low-Temp Freeboard Condensation Coil | Refrigerated Finned Stainless Steel operating at -10F to -20F |
| Freeboard Ratio | 120% |
| Horizontal Slide Lid | Manual or Automated |
| Watlow Solvent Safety and Temperature Controls | HTC, LTC, SVC, VU, RT and Low-Level Float |
| Monitoring of the Vapor Degreaser’s Correct Operating Condition | Comprehensive Indicator Light System and Temperature Displays |
| Automated Part Cleaning | |
| BHE Automated Basket Handling System | Yes—Optional |
| Operating Requirements | |
| Solvent Operating Requirement | 96 Gallons |
| Typical Electrical Service | 480V / 3 Phase |
ULTRA™ 2424 LE Low Emission Features
Foot Activated Spray Lance System
NESHAP Compliant Vapor Degreasing System
Solid Stainless Steel Construction - 1/8” Heavy gauge 304 stainless steel used on tank, water separator, spray reserve tank, primary coil, low-temperature coil, lid system, tank access doors and tank fittings.
Stainless Steel Primary Condensing Coil - Requires chiller or facility chilled water.
Sub-Zero Temperature Condensing Coil - Finned stainless steel condensation coil with Copeland R404A refrigeration operating to approximately -20F thus broadening the height of the solvent flash-off dwell zone for enhanced solvent containment.
Hand-Operated Spray Lance System - Mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand.
High Volume Condensate Water Separator - feeding spray reservoir
Ultrasonic Power – 1500 Watts @ 40 kHz - field replaceable submersible transducers and plug in external ultrasonic generator for easy servicing. Provides for both Input adjustment and sweep frequency adjustment.
Ultrasonic Immersion Sump filtration re-circulation system with mag-drive pump and pressure gauge for indicating when to replace filter.
Digital Display Safety Control Panel with WATLOW Temperature Limit Controls - Digital display on control panel; temperature set point as well as actual temperature – SVC (Safety Vapor Control), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)
Low-Level Float Safety System - Ensures the minimum amount of solvent in boil sump for proper system operation.
Water Flow Safety Control and Water Flow Temperature Control - ensures proper interaction between chiller and vapor degreaser.
Comprehensive Indicator Light System on Control Panel - Includes solvent low level float fault indicator lights (for easy identification of operating fault conditions). “Spray Ready” indicator light and zero coil “Defrost” indicator light, illuminated on/off switches for easy identification of system condition “Heat”, “Filtration”, Main Power”, “Refrigeration” and “Low-Temp Refrigeration”.
Horizontal Slide Lid - with two sections that meet at the middle of the tank sliding to the left and sliding to the right. Optional power roll-top available.
Two-Level Heat - for expedited start up and additional vapor condensation.
Electric Immersion Heat - Elements are mounted on clean-out door for easy removal and maintenance. Elements are 216L Stainless Steel.
One (1) stainless steel workbasket
Comprehensive 1-Year Manufacturer’s Warranty
ULTRA™ 2424 LE Operator’s Manual
Primary and Sub-Zero Coils Running Standard Refrigerant
Simple Control Safety Panel
ULTRA™ 2424 LE Benefits
Simple engineering and stoutness of design for durability and ease-of-maintenance
Excellent training - start-up, shut down, maintenance and good solvent cleaning work practices
Easy to support in the field with accessible heating elements, clear temperature read-outs, sophisticated indicator light system, and updated refrigeration systems using standard refrigerant
Cost effective operation and maintenance
Effective with a variety of non-flammable solvents, including chlorinated, brominated and fluorinated
State-of-the-art engineering based on a best practices for simplicity, field supportability and reliability
Minimal Solvent Emissions and Reduced Operating Costs due to NESHAP Compliant coils
Electrical Panel with Sophisticated Temperature Display and Indicator Light SystemULTRA™ 2424 LE Options
Electric horizontal slide lid
Power Pump-Out of Boil and/or Immersion Chamber for easy removal of solvent
Stainless Steel Basket Crash Guards
Solvent Containment Spill Tray
Increased Ultrasonic Power
Boil Sump Filtration
Boil Chamber Grate to suspend part basket above boiling solvent
Upgraded Filtration System for high volume of contaminate
Additional baskets
Choice of vapor degreasing solvent including EnTron™, EnTron-Aero™, GenTech™ and AeroTron™
ULTRA™ with Ground Load
Basket Handling System
ULTRA™ 2424 LE: Compatible with Non-Flammable Solvents
Simple Change over - The ULTRA™ 2424 LE is engineered to be compatible with a variety of solvents and in most cases a simple clean out and change of temperature settings is all that is required.
120% Freeboard — helps with vapor containment - so using chlorinated solvents like TCE, TCA, MCL and PERC is still possible.
Sub-Zero refrigeration coil - in addition to the primary refrigeration system, makes using brominated solvents like GenTech™, EnTron™ and EnTron-Aero™ or Modernized chemistries solvents such as AeroTron - an economical alternative.
Manual or Automated Slide-Lid - provides additional solvent containment for the new generation of fluorinated solvents like AeroTron™ and helps reduce evaporation.
