ULTRA™ vapor degreasing equipment

Model 2216 LE

Reliance ULTRA™ 1212LE Vapor Degreaser
Contact Us
customer service seal
Click to Download
ULTRA™ 2216 LE Feature Data Sheet
Turn-Key vapor degreasing systems

Ultrasonic Vapor Degreasing System

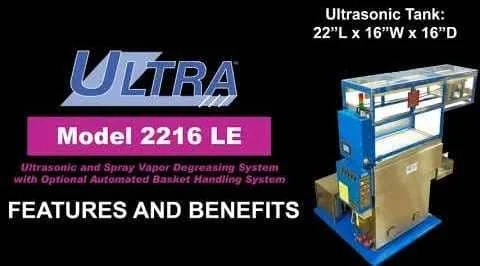

 Model 2216 LE

ULTRA™ 2216 LE vapor degreaser tank front
ULTRA™ 2216 LE - Front of Tank
ULTRA™ 2216 LE vapor degreaser insulated 304 steel tank
ULTRA™ 2216 LE - Fully Insulated 304 Steel Tank
ULTRA™ 2216 LE vapor degreaser side view with BHS
ULTRA™ 2216 LE - Side View with BHS
ULTRA™ 2216 LE vapor degreaser with ground load automated lift
ULTRA™ 2216 LE with Ground Load Automated Lift
ULTRA™ 2216 LE vapor degreaser control box
ULTRA™ 2216 LE - Control Box Side View
ULTRA™ 2216 LE vapor degreaser control panel
ULTRA™ 2216 LE - Control Panel
Ultra™ 2216 LE vapor degreaser filtration
ULTRA™ 2216 LE Filtration with Gauge
Ultra™ 2216 LE vapor degreaser tank interior with boil grate
ULTRA™ 2216 LE Tank Interior with Boil Grate
ULTRA™ 2216 LE vapor degreaser with digital controls
ULTRA™ 2216 LE - Digital Controls
ULTRA™ 2216 LE vapor degreaser finned coils
ULTRA™ 2216 LE - Finned Coils
ULTRA™ 2216 LE vapor degreaser clean out doors
ULTRA™ 2216 LE - Clean Out Doors
ULTRA™ 2216 LE vapor degreaser power roll-top cover
ULTRA™ 2216 LE - Power Roll-Top Cover
ULTRA™ 2216 LE vapor degreaser with external chiller
ULTRA™ 2216 LE with External Chiller
ULTRA™ 2216 LE vapor degreaser with ultrasonics
ULTRA™ 2216 LE with Ultrasonics
ULTRA™ 2216 LE vapor degreaser power pump out
ULTRA™ 2216 LE - Power Pump Out
Vapor Degreasing Solvent
Vapor Degreasing Solvent
Vapor Degreasing Solvent
Optional Narrow Configuration with Refrigeration on the Side

DIMENSIONS
Ultrasonic Cleaning Tank 22”L x 16”W x 16” Deep
Vapor Cleaning Zone 44”L x 16”W x 15” Deep
Boil Tank 22”L x 16”W
Footprint Dimensions (without casters) 68”L x 72”W x 75” High
FEATURES
Ultrasonic Cleaning 1000 Watts of Power at 40 kHz Field replaceable components. Adjustable Power and Sweep.
Vapor Cleaning Vapor Cleaning Zone above Boil Tank and Ultrasonic Tank
Spray Cleaning Hand Spray Wand and Large Spray Reserve Tank
Filtration of Ultrasonic Tank Continuous Filtration
Boil Tank Access Door “Easy Ring” Door System
Ultrasonic Tank Access Door “Easy Ring” Door System
SOLVENT CONTAINMENT
NESHAP Compliant Features Yes
Primary Condensing Coil Refrigerated Stainless Steel
Low-Temp Freeboard Condensation Coil Refrigerated Finned Stainless Steel operating at -10F to -20F
Freeboard Ratio 120%
Horizontal Slide Lid Manual or Automated
Watlow Solvent Safety and Temperature Controls HTC, LTC, SVC, VU, RT and Low-Level Float
Monitoring of the Vapor Degreaser’s Correct Operating Condition Comprehensive Indicator Light System and Temperature Displays
AUTOMATED PART CLEANING
HVL Automated Basket Handling System Yes—Optional Ground Load or Top Load
OPERATING REQUIREMENTS
Solvent Operating Requirement 46 Gallons
Typical Electrical Service 208V or 240V / 3 Phase

ULTRA™ 2216 LE Low Emission Features

Vapor Degreaser Foot Activated Spray Lance System
Foot Activated Spray Lance System
Vapor Degreaser Primary & Sub-Zero Coils
Primary & Sub-Zero Coils Running Standard Refrigerant
Vapor Degreaser Simple Control Safety Panel
Clean out doors on both the Boil Side & Immersion Side
  • NESHAP Compliant - Vapor Degreasing System
  • Solid Stainless Steel Construction - Heavy Gauge 304 Stainless Steel used on tank, water separator, spray reserve tank, primary coil, low-temperature coil, lid system, tank access doors and tank fittings.
  • Stainless Steel Primary Condensing Coil - New Copeland refrigeration system operating with R134A refrigerant
  • Sub-Zero Temperature Condensing Coil - Finned stainless steel condensation coil with Copeland R404A refrigeration operating to approximately -20F thus broadening the height of the solvent flash-off dwell zone for enhanced solvent containment.
  • Foot Activated Spray Lance System - mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand
  • High Volume Condensate Water Separator - feeding spray reservoir
  • Digital Display Safety Control Panel - including HTC, LTC, SVC, VU, RT
  • Ultrasonic Power – 1000 Watts @ 40 kHz - field replaceable submersible transducers and plug in external ultrasonic generator for easy servicing
  • Ultrasonic Power - Input adjustment & sweep frequency adjustment
  • Ultrasonic Immersion Sump filtration and recirculation system with mag-drive pump
  • WATLOW Temperature Safety Limit Controls Digital display on Control Panel; tem-perature set point as well as actual temperature – SVC (Safety Vapor Control), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)
  • Low-Level Float Safety System - Ensures the minimum amount of solvent in boil sump for proper system operation.
  • Comprehensive Indicator Light System on Control Panel Panel¡V Includes solvent low level float fault indicator lights (for easy identification of operating fault conditions). "Spray Ready" indicator light and zero coil "Defrost" indicator light, illuminated on/off switches for easy identification of system condition "Heat", "Filtration", "Main Power", "Refrigeration" and "Low-Temp Refrigeration"
  • Horizontal Slide Lid - for solvent containment. Optional power roll-top available.
  • Simple In & Out Electric Immersion Heater - "Screw-In" type elements for easy replacement.
  • Two Sump Access Clean-Out Doors - Boil Sump & Immersion Sump access for ease of maintenance though the clean-out door rather than over the tank top
  • One (1) stainless steel workbasket
  • Comprehensive 1-Year Manufacturer’s Warranty
  • ULTRA™ 2216 LE Operator’s Manual

Optional vapor degreaser accessoryAutomated Basket Handling Systems with Touch Screen Controls

Horizontal-Vertical Lift (HVL) System

Ground loading vapor degreaser
Part Basket 18” L x 13” W x 4” H

Features

  • Horizontal & Vertical Travel - Position and length of dwell at that position is PLC controlled.
  • Multiple Saved Part Processing Recipes - PLC Controller allows the saving of 30 separate part cleaning cycles.
  • Safety and Vapor Degreaser Operating Interlocks - Prevents automatic operation: if lid is not open, if heat is not operating, if system is not in full vapor reflux, or if there is lift operating system default.
  • Vapor Containment Enclosure - 3 side transparent enclosure on horizontal surfaces for viewing of tank operation and mechanical components.
  • NESHAP Compliant Features: Minimizes worker solvent exposure & enhances solvent containment;
  • Labor Cost Savings: Reduces or eliminates operator processing time;
  • Consistency: Ensures each part cleaned to the same processing specification;
  • Customizable: Create & select between 30 different part-cleaning recipes for different part-type processing.
Top load vapor degreaser
Click to Download
Automated Basket Handling System Specification Sheet

ULTRA™ 2216 LE: Compatible with Non-Flammable Solvents

  • Simple Change over - The ULTRA™ 2216 LE is engineered to be compatible with a variety of solvents and in most cases a simple clean out and change of temperature settings is all that is required.
  • 120% Freeboard — helps with vapor containment - so using chlorinated solvents like TCE, TCA, MCL and PERC is still possible.
  • Sub-Zero refrigeration coil - in addition to the primary refrigeration system, makes using brominated solvents like GenTech™, EnTron™ & EnTron-Aero™ or fluorinated solvents such as AeroTron™ an economical alternative.
  • Manual or Automated Slide-Lid - provides additional solvent containment for the new generation of fluorinated solvents like AeroTron™ and helps reduce evaporation.
GenTech™ vapor degreasing solvent
nPB Solvent for General Metal Finishing
EnTron-Aero™ vapor degreasing solvent
Boeing Approved nPB Solvent
AeroTron™ vapor degreasing solvent
Fluorinated Solvent for Precision Vapor Degreasing

Benefits of Working with Reliance:
Manufacturer of Solvents & Equipment

  • Comprehensive Vapor Degreasing Solution Provider - Reliance is the only industry player that manufactures both vapor degreasing solvent and vapor degreasing equipment. Our vapor degreasing equipment manufacturing expertise combined with our years of working with a variety of solvent cleaning processes make us able to support our customers in a variety of practical ways.
  • Years of experience - A unique history of developing solvents and manufacturing vapor degreasing equipment for precision aerospace, electronics and optics customers.
