Ultra Model 2216 LE Vapor Degreaser
ULTRA™ Model 2216 LE Features:
Ultrasonic Immersion Tank - 22”L x 16”W x 16”D
Easy Maintenance
Spray Wand for Additional Cleaning
Excellent Solvent Containment and NESHAP Compliant
Reduced Solvent and Operating Costs
Compatible with Variety of Solvents
120% Freeboard
Optional Ground-Load or Top-Load Basket Handling System Available
Optional Narrow Configuration with Refrigeration on the Side
The features and benefits of the ULTRA™ 2216 LE manufactured by Reliance Specialty Products are summarized.

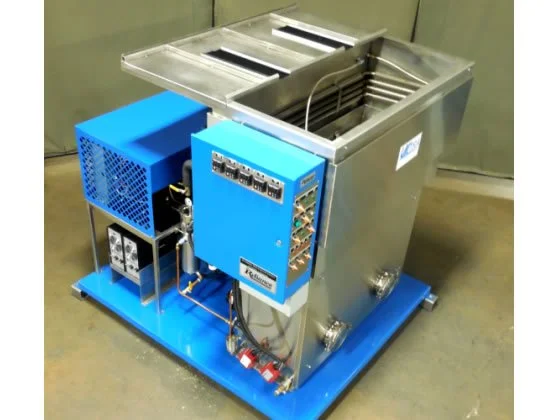

ULTRA™ 2216 LE - Front of Tank
ULTRA™ 2216 LE - Fully Insulated 304 Steel Tank
ULTRA™ 2216 LE - Side View with BHS
ULTRA™ 2216 LE with Ground Load Automated Lift
ULTRA™ 2216 LE - Control Box Side View
ULTRA™ 2216 LE - Control Panel
ULTRA™ 2216 LE Filtration with Gauge
ULTRA™ 2216 LE Tank Interior with Boil Grate
ULTRA™ 2216 LE - Digital Controls
ULTRA™ 2216 LE - Finned Coils
ULTRA™ 2216 LE - Clean Out Doors
ULTRA™ 2216 LE - Power Roll-Top Cover
ULTRA™ 2216 LE with External Chiller
ULTRA™ 2216 LE with Ultrasonics
ULTRA™ 2216 LE - Power Pump Out
Vapor Degreasing Solvent
Optional Narrow Configuration with Refrigeration on the Side
ULTRA™ 2216 LE
The vapor degreasing system on the ULTRA™ 2216 LE can process basket loads up to 100 lbs. It can be programmed with 30 different part cleaning recipes for different parts.
| ULTRA™ 2216 LE Unit Specifications | |
|---|---|
| Dimensions | |
| Ultrasonic Cleaning Tank | 22”L x 16”W x 16” Deep |
| Vapor Cleaning Zone | 44”L x 16”W x 15” Deep |
| Boil Tank | 22”L x 16”W |
| Footprint Dimensions (without casters) | 68”L x 72”W x 75” High |
| Features | |
| Ultrasonic Cleaning | 1000 Watts of Power at 40 kHz Field replaceable components. Adjustable Power and Sweep. |
| Vapor Cleaning | Vapor Cleaning Zone above Boil Tank and Ultrasonic Tank |
| Spray Cleaning | Hand Spray Wand and Large Spray Reserve Tank |
| Filtration of Ultrasonic Tank | Continuous Filtration |
| Boil Tank Access Door | “Easy Ring” Door System |
| Ultrasonic Tank Access Door | “Easy Ring” Door System |
| Solvent Containment | |
| NESHAP Compliant Features | Yes |
| Primary Condensing Coil | Refrigerated Stainless Steel |
| Low-Temp Freeboard Condensation Coil | Refrigerated Finned Stainless Steel operating at -10F to -20F |
| Freeboard Ratio | 120% |
| Horizontal Slide Lid | Manual or Automated |
| Watlow Solvent Safety and Temperature Controls | HTC, LTC, SVC, VU, RT and Low-Level Float |
| Monitoring of the Vapor Degreaser’s Correct Operating Condition | Comprehensive Indicator Light System and Temperature Displays |
| Automated Part Cleaning | |
| HVL Automated Basket Handling System | Yes—Optional Ground Load or Top Load |
| Operating Requirements | |
| Solvent Operating Requirement | 46 Gallons |
| Typical Electrical Service | 208V or 240V / 3 Phase |
ULTRA™ 2216 LE Low Emission Features
Foot Activated Spray Lance System
NESHAP Compliant Vapor Degreasing System
Solid Stainless Steel Construction - Heavy gauge 304 stainless steel used on tank, water separator, spray reserve tank, primary coil, low-temperature coil, lid system, tank access doors and tank fittings.
Stainless Steel Primary Condensing Coil - New Copeland refrigeration system operating with R134A refrigerant
Sub-Zero Temperature Condensing Coil - Finned stainless steel condensation coil with Copeland R404A refrigeration operating to approximately -20F thus broadening the height of the solvent flash-off dwell zone for enhanced solvent containment.
Foot Activated Spray Lance System - mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand
High Volume Condensate Water Separator - feeding spray reservoir
Digital Display Safety Control Panel - including HTC, LTC, SVC, VU, RT
Ultrasonic Power – 1000 Watts @ 40 kHz - field replaceable submersible transducers and plug in external ultrasonic generator for easy servicing
Ultrasonic Power - Input adjustment and sweep frequency adjustment
Ultrasonic Immersion Sump filtration and re-circulation system with mag-drive pump
WATLOW Temperature Safety Limit Controls - Digital display on control panel; temperature set point as well as actual temperature – SVC (Safety Vapor Control), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)
Low-Level Float Safety System - Ensures the minimum amount of solvent in boil sump for proper system operation.
Comprehensive Indicator Light System on Control Panel - Includes solvent low level float fault indicator lights (for easy identification of operating fault conditions). "Spray Ready" indicator light and zero coil "Defrost" indicator light, illuminated on/off switches for easy identification of system condition "Heat", "Filtration", "Main Power", "Refrigeration" and "Low-Temp Refrigeration"
Horizontal Slide Lid - for solvent containment. Optional power roll-top available.
Simple In and Out Electric Immersion Heater - "Screw-In" type elements for easy replacement.
Two Sump Access Clean-Out Doors - Boil sump and immersion sump access for ease of maintenance through the clean-out door rather than over the tank top
One (1) stainless steel workbasket
Comprehensive 1-Year Manufacturer’s Warranty
ULTRA™ 2216 LE Operator’s Manual
Primary and Sub-Zero Coils Running Standard Refrigerant
Clean Out Doors on Both the Boil Side and Immersion Side
Optional: Automated Basket Handling Systems with Touch Screen Controls
Horizontal-Vertical Lift (HVL) System
Part Basket 18” L x 13” W x 4” H
NESHAP Compliant Features: Minimizes worker solvent exposure and enhances solvent containment;
Labor Cost Savings: Reduces or eliminates operator processing time;
Consistency: Ensures each part cleaned to the same processing specification;
Customizable: Create and select between 30 different part-cleaning recipes for different part-type processing.
Horizontal and Vertical Travel - Position and length of dwell at that position is PLC controlled.
Multiple Saved Part Processing Recipes - PLC Controller allows the saving of 30 separate part cleaning cycles.
Safety and Vapor Degreaser Operating Interlocks - Prevents automatic operation: if lid is not open, if heat is not operating, if system is not in full vapor reflux, or if there is lift operating system default.
Vapor Containment Enclosure - 3 side transparent enclosure on horizontal surfaces for viewing of tank operation and mechanical components.
ULTRA™ 2216 LE: Compatible with Non-Flammable Solvents
Simple Change over - The ULTRA™ 2216 LE is engineered to be compatible with a variety of solvents and in most cases a simple clean out and change of temperature settings is all that is required.
120% Freeboard — helps with vapor containment - so using chlorinated solvents like TCE, TCA, MCL and PERC is still possible.
Sub-Zero refrigeration coil - in addition to the primary refrigeration system, makes using brominated solvents like GenTech™, EnTron™ and EnTron-Aero™ or Modernized chemistries solvents such as AeroTron - an economical alternative.
Manual or Automated Slide-Lid - provides additional solvent containment for the new generation of fluorinated solvents like AeroTron™ and helps reduce evaporation.
Reliance Specialty Products' core business is vapor degreasing solvent cleaning. We research, develop, manufacture, and expertly support advanced solvent cleaning products and metal finishing products.
We manufacture vapor degreasing solvents and low-emission NESHAP Compliant vapor degreasing equipment that provide years of quality, reliability and productivity.
Ready to Help Responsive Reliable
We are leaders in Comprehensive Vapor Degreasing Training, Maintenance and Solvent Cleaning Work Practices
