Ultra Model VS-3 LE Vapor Degreaser

ULTRA™ VS-3 vapor with spray degreaser
  • ULTRA™ Model VS-3 LE Features:

  • Easy Maintenance

  • Spray Wand for Additional Cleaning

  • Excellent Solvent Containment and NESHAP Compliant

  • Reduced Solvent and Operating Costs

  • On Casters for Mobility

  • Compatible with Variety of Solvents

  • >100% Freeboard

ULTRA™ vapor degreasing equipment logo
ULTRA™ VS-3 LE vapor with spray degreaser
ULTRA™ VS-3 LE Unit Specifications
Dimensions
Vapor Cleaning Zone 36”L x 24”W x 30” Deep
Optional Vapor Zone Widths 24”, 30”, 36”, 42”, or 48” Wide
Optional Vapor Zone Depths 24”, 30”, 36”, 42”, or 48” Deep
Footprint Dimensions 56”L x 72”W x 75” High (with feet)
Features
Vapor Cleaning Vapor Cleaning Zone above Boil Tank and Ultrasonic Tank
Spray Cleaning Hand Spray Wand and Large Spray Reserve Tank
Filtration of Boil Tank Optional Filtration
Boil Tank Access Door Large Access Door System
Spray Wand Yes; Optional Spray Manifolds
Solvent Containment
NESHAP Compliant Features Yes
Primary Condensing Coil (External Chilled) Stainless Steel
Low-Temp Freeboard Condensation Coil Refrigerated Finned Stainless Steel operating at -10F to -20F
Freeboard Ratio > 100%
Horizontal Slide Lid Manual or Automated
Watlow Solvent Safety and Temperature Controls HTC, LTC, SVC, VU, RT and Low-Level Float
Monitoring Vapor Degreaser’s Correct Operating Condition Comprehensive Indicator Light System and Temperature Displays
Operating Requirements
Solvent Operating Requirement 35 Gallons
Typical Electrical Service 480V, 240V or 208V / 3 Phase

ULTRA™ VS-3 LE Low Emission Features

Foot Activated Spray Lance System

Hand Operated Spray Lance System

  • NESHAP Compliant Vapor Degreasing System

  • Solid Stainless Steel Construction - 1/8” Heavy gauge 304 stainless steel used on tank, water separator, spray reserve tank, primary coil, low-temperature coil, lid system, tank access doors and tank fittings.

  • Stainless Steel Primary Condensing Coil - Requires chiller or facility chilled water.

  • Sub-Zero Temperature Condensing Coil - Finned stainless steel condensation coil with Copeland R404A refrigeration operating to approximately -20F thus broadening the height of the solvent flash-off dwell zone for enhanced solvent containment.

  • Hand-Operated Spray Lance System - Mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand.

  • High Volume Condensate Water Separator - feeding spray reservoir

  • Digital Display Safety Control Panel with WATLOW Temperature Limit Controls - Digital display on control panel; temperature set point as well as actual temperature – SVC (Safety Vapor Control), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)

  • Low-Level Float Safety System - Ensures the minimum amount of solvent in boil sump for proper system operation.

  • Water Flow Safety Control and Water Flow Temperature Control - ensures proper interaction between chiller and vapor degreaser.

  • Comprehensive Indicator Light System on Control Panel - Includes solvent low level float fault indicator lights (for easy identification of operating fault conditions). “Spray Ready” indicator light and zero coil “Defrost” indicator light, illuminated on/off switches for easy identification of system condition “Heat”, “Filtration”, Main Power”, “Refrigeration” and “Low-Temp Refrigeration”.

  • Horizontal Slide Lid - optional two-part lid with sections that meet at the middle of the tank sliding to the left and sliding to the right. Optional power roll-top available.

  • Two-Level Heat - for expedited start up and additional vapor condensation.

  • Electric Immersion Heat - Elements are mounted on clean-out door for easy removal and maintenance.

  • One (1) stainless steel workbasket

  • Comprehensive 1-Year Manufacturer’s Warranty

  • ULTRA™ VS-3 LE Operator’s Manual

Heating Elements Mounted on Clean–Out Door

Heating Elements Mounted on Clean–Out Door

Sub-Zero Coils Operating at –20F for Enhanced Containment

Sub-Zero Coils Operating at –20F for Enhanced Containment

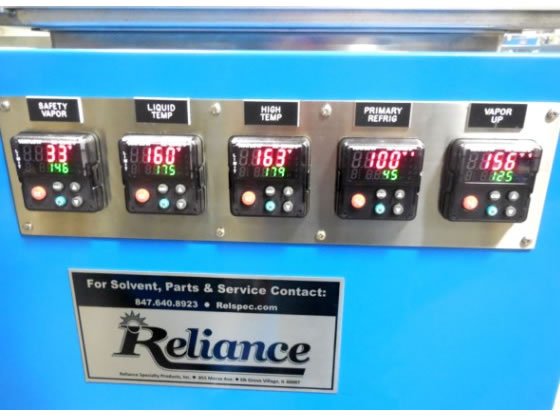

Simple Control Safety Panel

Simple Control Safety Panel

ULTRA™ VS-3 LE Benefits

  • Simple engineering and stoutness of design for durability and ease-of-maintenance

  • Excellent training - start-up, shut down, maintenance and good solvent cleaning work practices

  • Easy to support in the field with accessible heating elements, clear temperature read-outs, sophisticated indicator light system, and updated refrigeration systems using standard refrigerant

  • Cost effective operation and maintenance

  • Effective with a variety of non-flammable solvents, including chlorinated, brominated and fluorinated

  • State-of-the-art engineering based on a best practices for simplicity, field supportability and reliability

  • Minimal Solvent Emissions and Reduced Operating Costs due to NESHAP Compliant coils

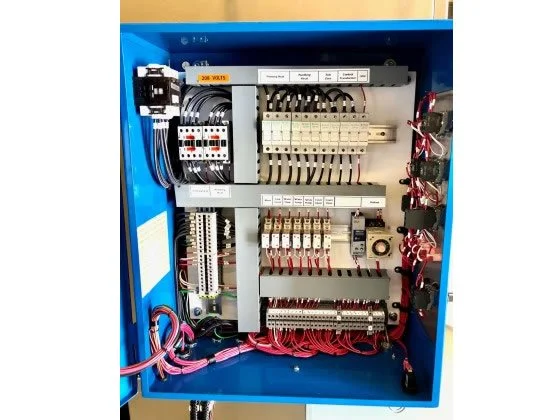

Electrical Panel with Sophisticated Temperature Display & Indicator Light System
Electrical Panel with Sophisticated Temperature Display and Indicator Light System

ULTRA™ VS-3 LE Options

  • Electric horizontal slide lid

  • Increased width or depth increases vapor zone

  • Spray manifolds

  • Power pump-out of boil and/or immersion chamber for easy removal of solvent

  • Stainless steel basket crash guards

  • Solvent containment spill tray

  • Boil sump filtration

  • Boil chamber grate to suspend part basket above boiling solvent

  • Upgraded filtration system for high volume of contaminate

  • Additional baskets

  • Choice of vapor degreasing solvent including EnTron™, EnTron-Aero™, GenTech™ and AeroTron™

ULTRA™ VS-3 LE: Compatible with Non-Flammable Solvents

  • Simple Change over - The ULTRA™ VS-3 LE is engineered to be compatible with a variety of solvents and in most cases a simple clean out and change of temperature settings is all that is required.

  • >100% Freeboard — helps with vapor containment - so using chlorinated solvents like TCE, TCA, MCL and PERC is still possible.

  • Sub-Zero refrigeration coil - in addition to the primary refrigeration system, makes using brominated solvents like GenTech™, EnTron™ and EnTron-Aero™ or Modernized chemistries solvents such as AeroTron - an economical alternative.

  • Manual or Automated Slide-Lid - provides additional solvent containment for the new generation of fluorinated solvents like AeroTron™ and helps reduce evaporation.
