Ultra Model 7216 LE Vapor Degreaser
ULTRA™ Model 7216 LE Features:
Ultrasonic Immersion Tank - 72”L x 16”W x 16” Deep*
Easy Maintenance
Spray Wand for Additional Cleaning
Excellent Solvent Containment and NESHAP Compliant
Reduced Solvent and Operating Costs
Compatible with Variety of Solvents
120% Freeboard
*Customizable with various depths, spray manifolds and/or varying heat.
ULTRA™ 7216 LE - Overall
ULTRA™ 7216 LE - Side Profile
Primary & Sub-Zero Coils

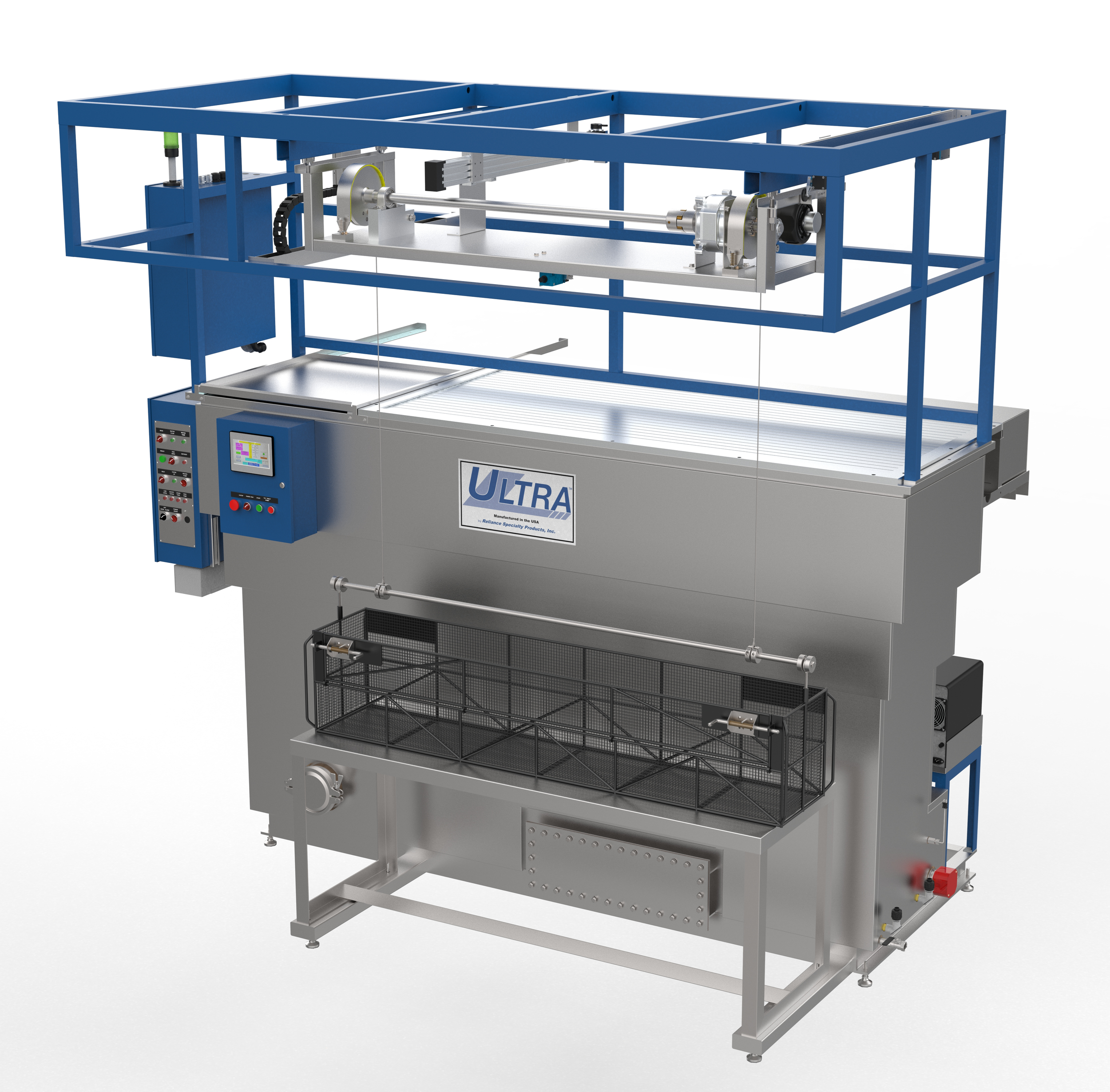

ULTRA™ 7216 LE - Overall with Hoist
ULTRA™ 7216 LE with Hoist
ULTRA™ 7216 LE without Lift

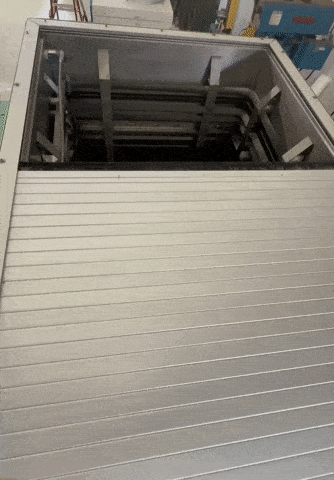

ULTRA™ 7216 LE - Top Open
ULTRA™ 7216 LE
Tank and Refrigeration Coils
ULTRA™ 7216 LE - Control Panel
ULTRA™ 7216 LE with Drum of AeroTron™-100 Solvent
The optional basket handling gantry system is an economical option for processing heavy loads vertically while minimizing worker contact with solvent. The gantry is a flexible basket lift that can be tailored to your vapor degreasing needs with adjustable lengths, heights and basket load sizes.
| ULTRA™ 7216 LE Unit Specifications | |
|---|---|
| Dimensions | |
| Immersion Cleaning Tank | 72”L x 16”W x 16” Deep |
| Vapor Cleaning Zone | 94”L x 16”W x 12” Deep |
| Boil Tank | 94”L x 16”W |
| Approximate Footprint Dimensions | 110”L x 58”W x 52” High |
| Features | |
| Immersion Cleaning | Extra Long Immersion Cleaning Zone |
| Vapor Cleaning | Vapor Cleaning Zone above Boil Tank and Immersion Tank |
| Spray Cleaning | Hand Spray Wand and Large Spray Reserve Tank |
| Filtration of Ultrasonic Tank | Continuous Filtration |
| Boil Tank Access Door | Large Access Door System |
| Spray Wand | Yes |
| Solvent Containment | |
| NESHAP Compliant Features | Yes |
| Primary Condensing Coil | Refrigerated Stainless Steel |
| Low-Temp Freeboard Condensation Coil | Refrigerated Finned Stainless Steel operating at -10F to -20F |
| Freeboard Ratio | 100% |
| Horizontal Slide Lid | Manual |
| Watlow Solvent Safety and Temperature Controls | HTC, LTC, SVC, VU, RT and Low-Level Float |
| Monitoring of the Vapor Degreaser’s Correct Operating Condition | Comprehensive Indicator Light System and Temperature Displays |
| Basket Handling | |
| Remote Controlled Basket Handling Hoist | Yes—Optional |
| Operating Requirements | |
| Solvent Operating Requirement | 96 Gallons |
| Typical Electrical Service | 480V / 3 Phase |
ULTRA™ 7216 LE Low Emission Features
Foot Activated Spray Lance System
NESHAP Compliant Vapor Degreasing System
Solid Stainless Steel Construction - 1/8” Heavy gauge 304 stainless steel used on tank, water separator, spray reserve tank, primary coil, low-temperature coil, lid system, tank access doors and tank fittings.
Stainless Steel Primary Condensing Coil - Requires chiller or facility chilled water.
Sub-Zero Temperature Condensing Coil - Finned stainless steel condensation coil with Copeland R404A refrigeration operating to approximately -20F thus broadening the height of the solvent flash-off dwell zone for enhanced solvent containment.
Hand-Operated Spray Lance System - Mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand.
High Volume Condensate Water Separator - feeding spray reservoir
Ultrasonic Power – 1500 Watts @ 40 kHz - field replaceable submersible transducers and plug in external ultrasonic generator for easy servicing. Provides for both Input adjustment and sweep frequency adjustment.
Ultrasonic Immersion Sump filtration re-circulation system with mag-drive pump and pressure gauge for indicating when to replace filter.
Digital Display Safety Control Panel with WATLOW Temperature Limit Controls - Digital display on control panel; temperature set point as well as actual temperature – SVC (Safety Vapor Control), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)
Low-Level Float Safety System - Ensures the minimum amount of solvent in boil sump for proper system operation.
Water Flow Safety Control and Water Flow Temperature Control - ensures proper interaction between chiller and vapor degreaser.
Comprehensive Indicator Light System on Control Panel - Includes solvent low level float fault indicator lights (for easy identification of operating fault conditions). “Spray Ready” indicator light and zero coil “Defrost” indicator light, illuminated on/off switches for easy identification of system condition “Heat”, “Filtration”, Main Power”, “Refrigeration” and “Low-Temp Refrigeration”.
Horizontal Slide Lid - with two sections that meet at the middle of the tank sliding to the left and sliding to the right. Optional power roll-top available.
Two-Level Heat - for expedited start up and additional vapor condensation.
Electric Immersion Heat - Elements are mounted on clean-out door for easy removal and maintenance. Elements are 216L Stainless Steel.
Comprehensive 1-Year Manufacturer’s Warranty
ULTRA™ 7216 LE Operator’s Manual
Primary and Sub-Zero Coils Running Standard Refrigerant
Simple Control Safety Panel
ULTRA™ 7216 LE Benefits
Simple engineering and stoutness of design for durability and ease-of-maintenance
Excellent training - start-up, shut down, maintenance and good solvent cleaning work practices
Easy to support in the field with accessible heating elements, clear temperature read-outs, sophisticated indicator light system, and updated refrigeration systems using standard refrigerant
Cost effective operation and maintenance
Effective with a variety of non-flammable solvents, including chlorinated, brominated and fluorinated
State-of-the-art engineering based on a best practices for simplicity, field supportability and reliability
Minimal Solvent Emissions and Reduced Operating Costs due to NESHAP Compliant coils
Electrical Panel with Sophisticated Temperature Display & Indicator Light SystemULTRA™ 7216 LE Options
Increased tank depth for increased vapor zone
Electric horizontal slide lid
Additional baskets
Solvent Containment Spill Tray
Increased Ultrasonic Power
Choice of vapor degreasing solvent including EnTron™, EnTron-Aero™, GenTech™ and AeroTron™
ULTRA™ 7216 LE: Compatible with Non-Flammable Solvents
Simple Change over - The ULTRA™ 7216 LE is engineered to be compatible with a variety of solvents and in most cases a simple clean out and change of temperature settings is all that is required.
120% Freeboard — helps with vapor containment - so using chlorinated solvents like TCE, TCA, MCL and PERC is still possible.
Sub-Zero refrigeration coil - in addition to the primary refrigeration system, makes using brominated solvents like GenTech™, EnTron™ and EnTron-Aero™ or Modernized chemistries solvents such as AeroTron - an economical alternative.
Manual or Automated Slide-Lid - provides additional solvent containment for the new generation of fluorinated solvents like AeroTron™ and helps reduce evaporation.
