Ultra Model 1212 LE Vapor Degreaser
ULTRA™ Model 1212 LE Features:
Ultrasonic Immersion Sump: 12”L x 12”W x 10”D
Easy Maintenance
Spray Wand for Additional Cleaning
Excellent Solvent Containment and NESHAP Compliant
Reduced Solvent and Operating Costs
Small Foot-Print
On Casters for Mobility
Compatible with Variety of Solvents
120% Freeboard

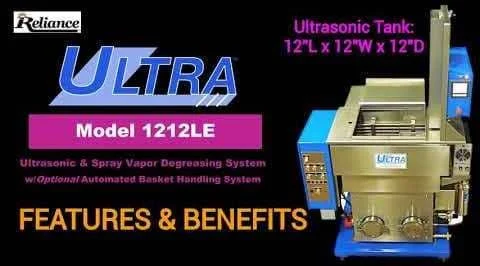

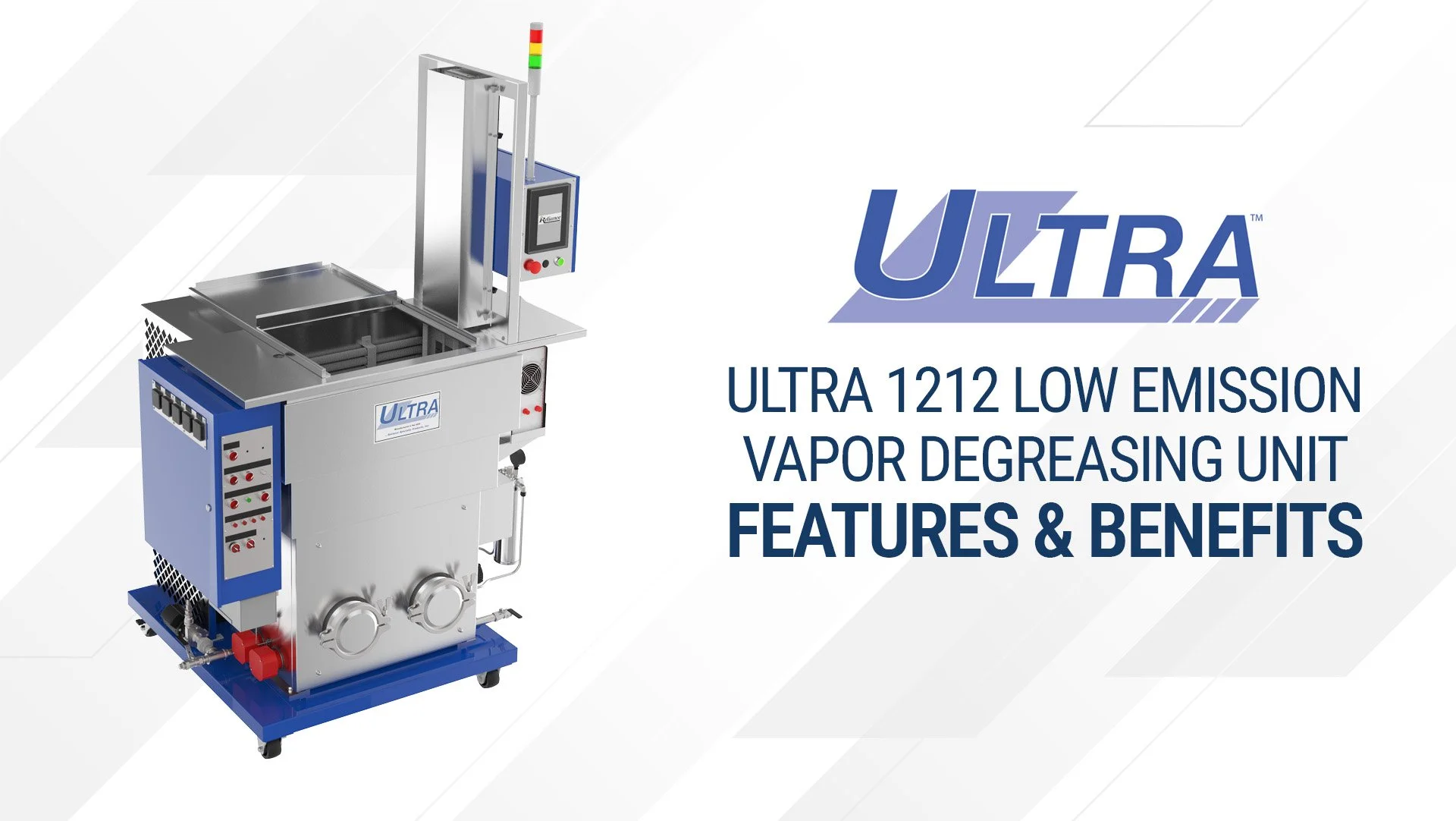

Describes features and benefits of the ULTRA™ 1212 LE vapor degreasing system manufactured by Reliance Specialty Products.
ULTRA™ 1212 LE Front of Unit
ULTRA™ 1212 LE - Left Side
ULTRA™ 1212 LE - Right Side
ULTRA™ 1212 LE - Side of Unit
ULTRA™ 1212 LE - Top of Unit
ULTRA™ 1212 LE - Tank Interior
ULTRA™ 1212 LE - Heating Element
ULTRA™ 1212 LE - Filtration with Gauge
ULTRA™ 1212 LE - Digital Controls
ULTRA™ 1212 LE - Clean Out Doors
ULTRA™ 1212 LE - Optional Vapor Zone Tray
ULTRA™ 1212 LE with Basket Elevator
ULTRA™ 1212 LE Compared to Larger ULTRA™ 2012LE
AeroTron™ Vapor Degreasing Solvent
| ULTRA™ 1212 LE Unit Specifications | |
|---|---|
| Dimensions | |
| Ultrasonic Cleaning Tank | 12”L x 12”W x 10” Deep |
| Vapor Cleaning Zone | 24”L x 12”W x 10” Deep |
| Boil Tank | 12”L x 12”W |
| Footprint Dimensions (without casters) | 44”L x 44”W x 45.5” High |
| Features | |
| Ultrasonic Cleaning | 500 Watts of Power at 40 kHz Field replaceable components. Adjustable Power and Sweep. |
| Vapor Cleaning | Vapor Cleaning Zone above Boil Tank and Ultrasonic Tank |
| Spray Cleaning | Hand Spray Wand and Large Spray Reserve Tank |
| Filtration of Ultrasonic Tank | Continuous Filtration |
| Boil Tank Access Door | “Easy Ring” Door System |
| Ultrasonic Tank Access Door | “Easy Ring” Door System |
| Solvent Containment | |
| NESHAP Compliant Features | Yes |
| Primary Condensing Coil | Refrigerated Stainless Steel |
| Low-Temp Freeboard Condensation Coil | Refrigerated Finned Stainless Steel operating at -10F to -20F |
| Freeboard Ratio | 120% |
| Horizontal Slide Lid | Manual or Automated |
| Watlow Solvent Safety and Temperature Controls | HTC, LTC, SVC, VU, RT and Low-Level Float |
| Monitoring of the Vapor Degreaser’s Correct Operating Condition | Comprehensive Indicator Light System and Temperature Displays |
| Automated Part Cleaning | |
| BHE Automated Basket Handling System | Yes—Optional |
| Operating Requirements | |
| Solvent Operating Requirement | 17 Gallons |
| Typical Electrical Service | 208V or 240V / 1 Phase |
ULTRA™ 1212 LE Low Emission Features
Foot Activated Spray Lance System
NESHAP Compliant Vapor Degreasing System
Solid Tank Construction - Heavy gauge 304 stainless steel
Stainless Steel Primary Condensing Coil - New Copeland refrigeration system operating with R134A refrigerant
Sub-Zero Temperature Condensing Coil - Finned stainless steel with Copeland R404A refrigeration system operating to approximately -20F to supplement primary condensation system. Includes defrost cycle, low-temperature condensing coil with condensate trough
Foot Activated Spray Lance System - mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand
High Volume Condensate Water Separator - feeding spray reservoir
Digital Display Safety Control Panel - including HTC, LTC, SVC, VU, RT
Ultrasonic Power – 500 Watts @ 40 kHz - field replaceable submersible transducers and plug in external ultrasonic generator for easy servicing
Ultrasonic Power - Input adjustment and sweep frequency adjustment
Ultrasonic Immersion Sump filtration and re-circulation system with mag-drive pump
WATLOW Temperature Safety Limit Controls with digital display on Control Panel; temperature set point as well as actual temperature – SVC (Safety Vapor Control), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)
Solvent Low-Level Float Safety
Control panel with solvent low level float fault indicator lights (for easy identification of operating fault conditions). “Spray Ready” indicator light and zero coil “Defrost” indicator light, illuminated on/off switches for easy identification of system condition “Heat”, “Filtration”, Main Power”, “Refrigeration” and “Low-Temp Refrigeration”
Manual Horizontal Slide Lid - for solvent containment
Casters - for easy movement
Electric Immersion heat - "Screw-In" type elements for easy replacement
Two Sump Access Clean-Out Doors - Boil sump and immersion sump access for ease of maintenance through the clean-out door rather than over the tank top
One (1) stainless steel workbasket
Comprehensive 1-Year Manufacturer’s Warranty
ULTRA™ 1212 LE Operator’s Manual
Primary and Sub-Zero Coils Running Standard Refrigerant
Simple Control Safety Panel
ULTRA™ 1212 LE Benefits
Simple engineering and stoutness of design for durability and ease-of-maintenance
Excellent training - start-up, shut down, maintenance and good solvent cleaning work practices
Easy to support in the field with accessible heating elements, clear temperature read-outs, sophisticated indicator light system, and updated refrigeration systems using standard refrigerant
Cost effective operation and maintenance
Compact footprint
Effective with a variety of non-flammable solvents, including chlorinated, brominated and fluorinated
State-of-the-art engineering based on a best practices for simplicity, field supportability and reliability
Minimal Solvent Emissions and Reduced Operating Costs due to NESHAP Compliant coils
Electrical panel with sophisticated temperature display and indicator light systemULTRA™ 1212 LE Options
Increased tank depth for increased vapor zone
Electric horizontal slide lid
Additional baskets
Solvent Containment Spill Tray
Increased Ultrasonic Power
Choice of vapor degreasing solvent including EnTron™, EnTron-Aero™, GenTech™ and AeroTron™
Optional Vertical Basket Handling System for loads up to 35 lbs.
ULTRA™ 1212 LE: Compatible with Non-Flammable Solvents
Simple Change over - The ULTRA™ 1212 LE is engineered to be compatible with a variety of solvents and in most cases a simple clean out and change of temperature settings is all that is required.
120% Freeboard — helps with vapor containment - so using chlorinated solvents like TCE, TCA, MCL and PERC is still possible.
Sub-Zero refrigeration coil - in addition to the primary refrigeration system, makes using brominated solvents like GenTech™, EnTron™ and EnTron-Aero™ or Modernized chemistries solvents such as AeroTron - an economical alternative.
Manual or Automated Slide-Lid - provides additional solvent containment for the new generation of fluorinated solvents like AeroTron™ and helps reduce evaporation.
