Ultra Model 250 Vapor Degreaser
ULTRA™ Model 250 Features:
Ultrasonic Immersion Sump - 11”L x 9”W x 8”D
Compact Footprint: Fits Thru 30" Door
Excellent Solvent Containment
Extended Refrigeration Zone
250 Watts of Ultrasonics with Frequency and Sweep
Digital Temperature Readouts
Easy Maintenance
On Casters for Mobility
Compatible with Variety of Solvents
Optional Spray Wand
ULTRA™ 250: Significant Cleaning in Compact Footprint
ULTRA™ 250 with AeroTron-100 Solvent - 5 Gallon Pail
ULTRA™ 250 - Left Side View

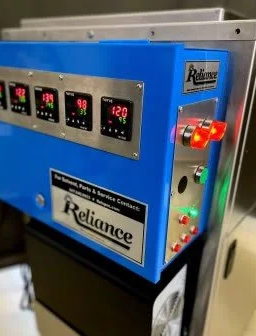

ULTRA™ 250 - Digital Controls with Temperature Readouts

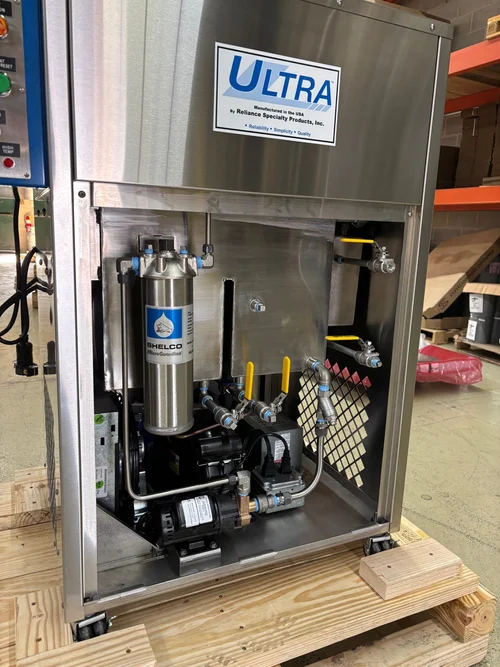

ULTRA™ 250 - Easy to Remove Front Panel
Tank Interior with Extra Refrigeration Zone for Solvent Containment
Optional 250 Watts of Modular Ultrasonics Make Replacement Possible
ULTRA™ 250 - Footprint

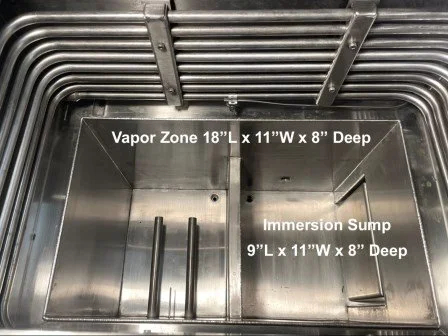

ULTRA™ 250 - Vapor Zone
The ULTRA™ 250 is a compact, efficient vapor degreasing system that provides significant cleaning in a small footprint. Ideal for companies with "cleaning cells" or who need smaller vapor degreasing units placed at point-of-use throughout the plant. The ULTRA 250 fits into synchronous manufacturing very nicely.
The ULTRA 250 works well with our AeroTron™-100 or AeroTron-AV modern solvents as well as other non-flammable degreasing solvents.
The ULTRA 250 is the model that is replacing many older BTC200s, B125s, B250s and MLR120s that have been in the field for years. No chiller is required to support the ULTRA 250, as it has an onboard refrigerated system. Because it was built as a compact "work cell" type model it has more working area than most of the older smaller units. The ULTRA 250 has many upgrades while maintaining operator and maintenance simplicity.
Give us a call at 847.640.8923 or CONTACT US.
| ULTRA™ 250 Unit Specifications | |
|---|---|
| Dimensions | |
| Ultrasonic Cleaning Tank | 9"L x 11"W x 8" Deep |
| Vapor Cleaning Zone | 18"L x 11"W x 8" Deep |
| Boil Tank | 9"L x 11"W |
| Footprint Dimensions | 36"L x 24"W x 44" High |
| Features | |
| Ultrasonic Cleaning | 250 Watts of Power at 40 kHz Field replaceable components. Adjustable Power and Sweep. Optional Feature. |
| Vapor Cleaning | Vapor Cleaning Zone above Boil Tank and Ultrasonic Tank |
| Hand Wand Spray Cleaning | Yes - Optional |
| Continuous Filtration of Ultrasonic Tank | Yes - Optional |
| Solvent Containment | |
| Extended Primary Condensing Coil | Refrigerated Stainless Steel |
| Freeboard Ratio | 100% |
| Horizontal Slide Lid | Manual |
| Solvent Safety Indicators & DigitalTemperature Controls | HTC, LTC, SVC, VU, RT and Low-Level Float |
| Monitoring of the Vapor Degreaser’s Correct Operating Condition | Comprehensive Indicator Light System and Temperature Displays |
| Operating Requirements | |
| Solvent Operating Requirement | 5.6 Gallons |
| Typical Electrical Service | 208V or 240V / 1 Phase |
ULTRA™ 250 Benefits
Value - Smart compact system that processes lots of parts - fast!
Easy to support in the field - accessible heating elements, clear temperature digital read-outs, sophisticated indicator light system
Safety - Solvent low-level float safety indicator
Cost effective - reduced solvent use and easy maintenance
Powerful - 250 Watts of Ultrasonics - field replaceable transducers and plug in external ultrasonic generator for easy servicing. And adjustable power and sweep frequency
Off-the-Shelf Components - for simple maintenance and minimized down time
Digital Display Safety Controls - including HTC, LTC, SVC, VU, RT
Compact Footprint - fits through standard door frame
Use with a Variety of Non-flammable Solvents - including AeroTron™-100 advanced engineering solvent
State-of-the-Art Engineering - for simplicity, field supportability and reliability
Stout - solid tank construction with heavy gauge 304 stainless steel
Minimal Solvent Emissions and Reduced Operating Costs
Excellent Training - start-up, shut down, maintenance and good solvent cleaning work practices
INLCUDES: One (1) Stainless Steel Workbasket, Comprehensive 1-Year Manufacturer's Warranty, and ULTRA™ 250 Operator's Manual
Everything you need in one comprehensive package.
ULTRA™ 250 Options:
250 Watts of ultrasonics
Filtration of ultrasonic tank
Hand spray wand
Additional 6" x 9" baskets
Solvent containment spill tray
Choice of vapor degreasing solvent including AeroTron-100, & AeroTron-AV
ULTRA™ 250 Compatible with Non-Flammable Solvents
AeroTron-100 is a powerful, advanced engineered vapor degreasing fluid designed for precision cleaning for aerospace, automotive and electronics industries. The high solvency power, low surface tension and non-flammability make it an ideal ultrasonic vapor degreasing solvent.
AeroTron™-100 is always in stock and ready to ship. It is specially formulated for metal, plastic and elastomer compatibility. It is a direct replacement for chlorinated solvents: TCE and PERC and nPB-based solvents. Contact us today at 847.640.8923 for more information or a free test sample.
