ULTRA MODEL 2012 LE
VAPOR DEGREASER
ULTRA™ Model 2012 LE Features:
Ultrasonic Immersion Sump - 20”L x 12”W x 12”D
Easy Maintenance
Spray Wand for Additional Cleaning
Excellent Solvent Containment and NESHAP Compliant
Reduced Solvent and Operating Costs
Small Foot-Print - comes in narrow configuration to fit through 30” Door
On Casters for Mobility
Compatible with Variety of Solvents
120% Freeboard
CONTACT US TO LEARN MORE
Dual Basket Handling for Twice the Parts Processing
ULTRA™ 2012 LE Front with Lid Open

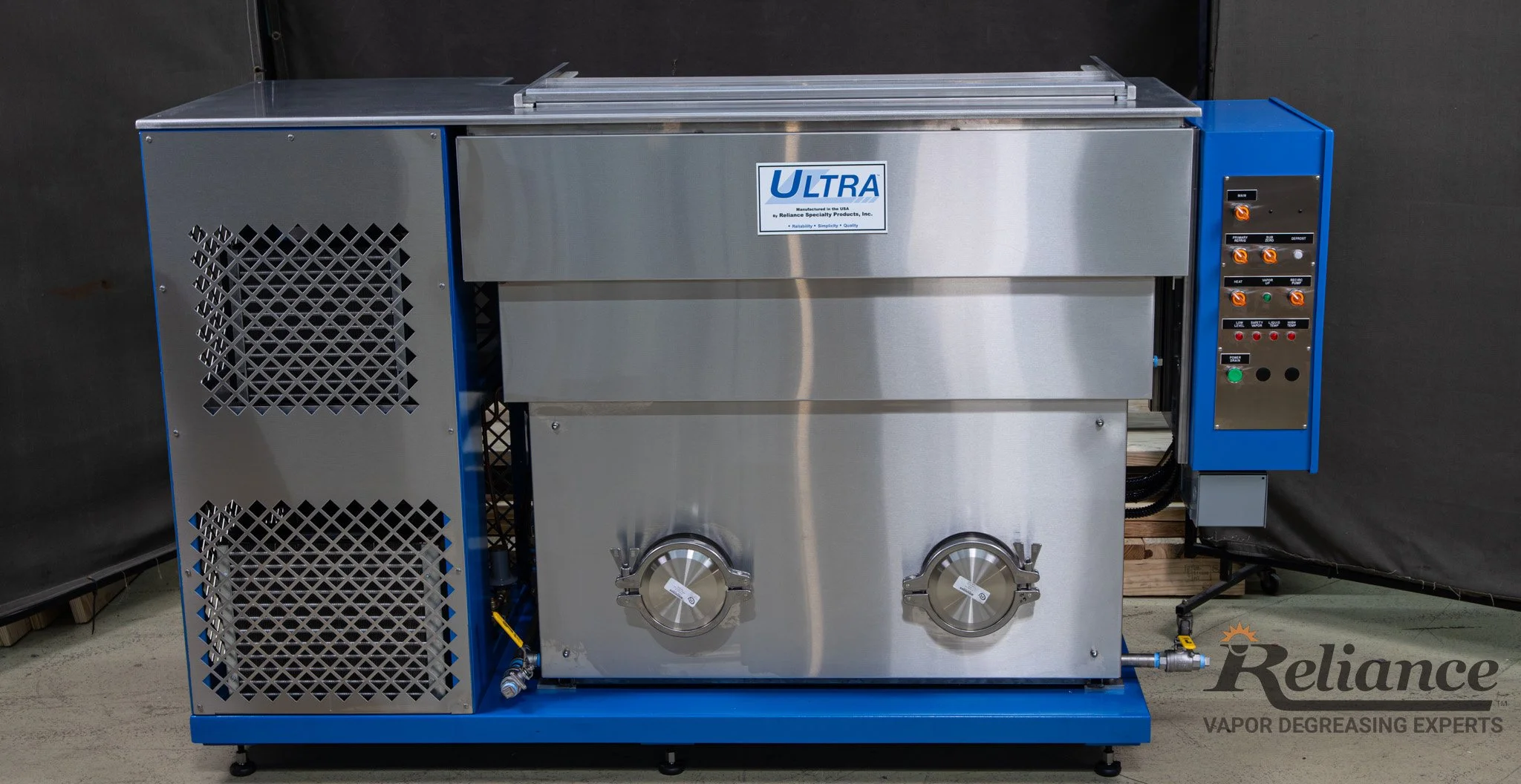

ULTRA™ 2012 LE Front View
ULTRA™ 2012 LE Top View
Easy Access Clean-Out Doors on Both Boil Side & Immersion Side
Tank Interior
Programmable Digital Controls
Stainless Steel Continuous Coil Primary & Secondary
ULTRA™ 2012 LE Rear View
ULTRA™ 2012 LE Side View
ULTRA™ 2012 LE Narrow (30" wide)

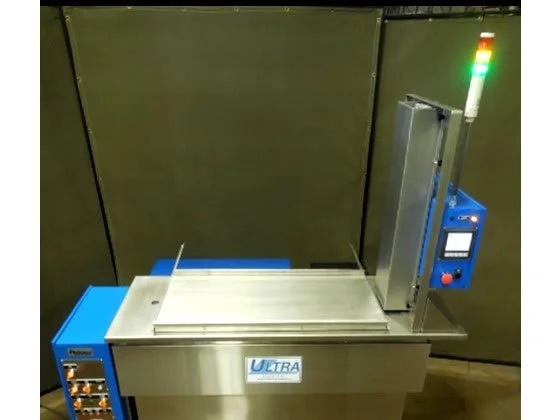

Basket Handling Elevator - Optional
Dual Automated Basket Handling Elevators - Optional

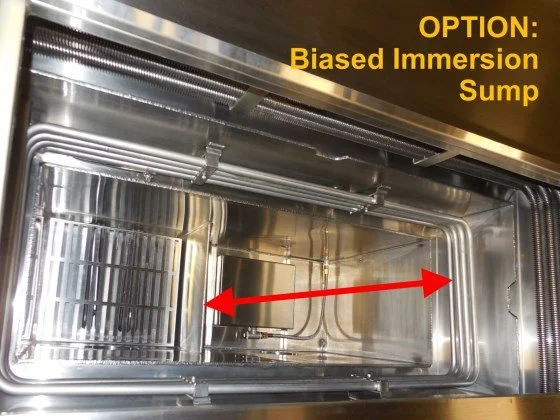

Biased Immersion / Ultrasonic Sump
Available in Narrow configuration which fits through a standard 30” door frame.
| ULTRA™ 2012 LE Unit Specifications | |
|---|---|
| Dimensions | |
| Ultrasonic Cleaning Tank | 20”L x 12”W x 12” Deep |
| Vapor Cleaning Zone | 40”L x 12”W x 12” Deep |
| Boil Tank | 20”L x 12”W |
| Footprint Dimensions (without casters)** | 59”L x 55”W x 55” High** |
| NARROW Footprint Dimensions | 80”L x 30”W x 47” High** |
| Features | |
| Ultrasonic Cleaning | 500 Watts of Power at 40 kHz Field replaceable components. Adjustable Power and Sweep. |
| Vapor Cleaning | Vapor Cleaning Zone above Boil Tank and Ultrasonic Tank |
| Spray Cleaning | Hand Spray Wand and Large Spray Reserve Tank |
| Filtration of Ultrasonic Tank | Continuous Filtration |
| Boil Tank Access Door | “Easy Ring” Door System |
| Ultrasonic Tank Access Door | “Easy Ring” Door System |
| Solvent Containment | |
| NESHAP Compliant Features | Yes |
| Primary Condensing Coil | Refrigerated Stainless Steel |
| Low-Temp Freeboard Condensation Coil | Refrigerated Finned Stainless Steel operating at -10F to -20F |
| Freeboard Ratio | 120% |
| Horizontal Slide Lid | Manual or Automated |
| Watlow Solvent Safety and Temperature Controls | HTC, LTC, SVC, VU, RT and Low-Level Float |
| Monitoring of the Vapor Degreaser’s Correct Operating Condition | Comprehensive Indicator Light System and Temperature Displays |
| Automated Part Cleaning | |
| BHE Automated Basket Handling System | Yes—Optional |
| Operating Requirements | |
| Solvent Operating Requirement | 26 Gallons |
| Typical Electrical Service | 208V or 240V / 1 Phase |
ULTRA™ 2012 LE Low Emission Features
Foot Activated Spray Lance System
NESHAP Compliant Vapor Degreasing System
Solid Stainless Steel Construction - Heavy gauge 304 stainless steel used on tank, water separator, spray reserve tank, primary coil, low-temperature coil, lid system, tank access doors and tank fittings.
Stainless Steel Primary Condensing Coil - New Copeland refrigeration system operating with standard R134A refrigerant.
Sub-Zero Temperature Condensing Coil - Finned stainless steel condensation coil with Copeland R404A refrigeration operating to approximately -20F thus broadening the height of the solvent flash-off dwell zone for enhanced solvent containment.
Foot Operated Spray Lance System - Mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand.
High Volume Condensate Water Separator - feeding spray reservoir
Digital Display Safety Control Panel - including HTC, LTC, SVC, VU, RT
Ultrasonic Power – 500 Watts @ 40 kHz - field replaceable submersible transducers and plug in external ultrasonic generator for easy servicing
Ultrasonic Power - Input adjustment and sweep frequency adjustment

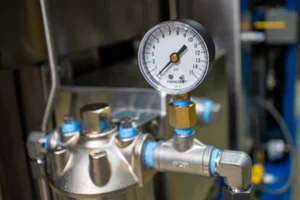

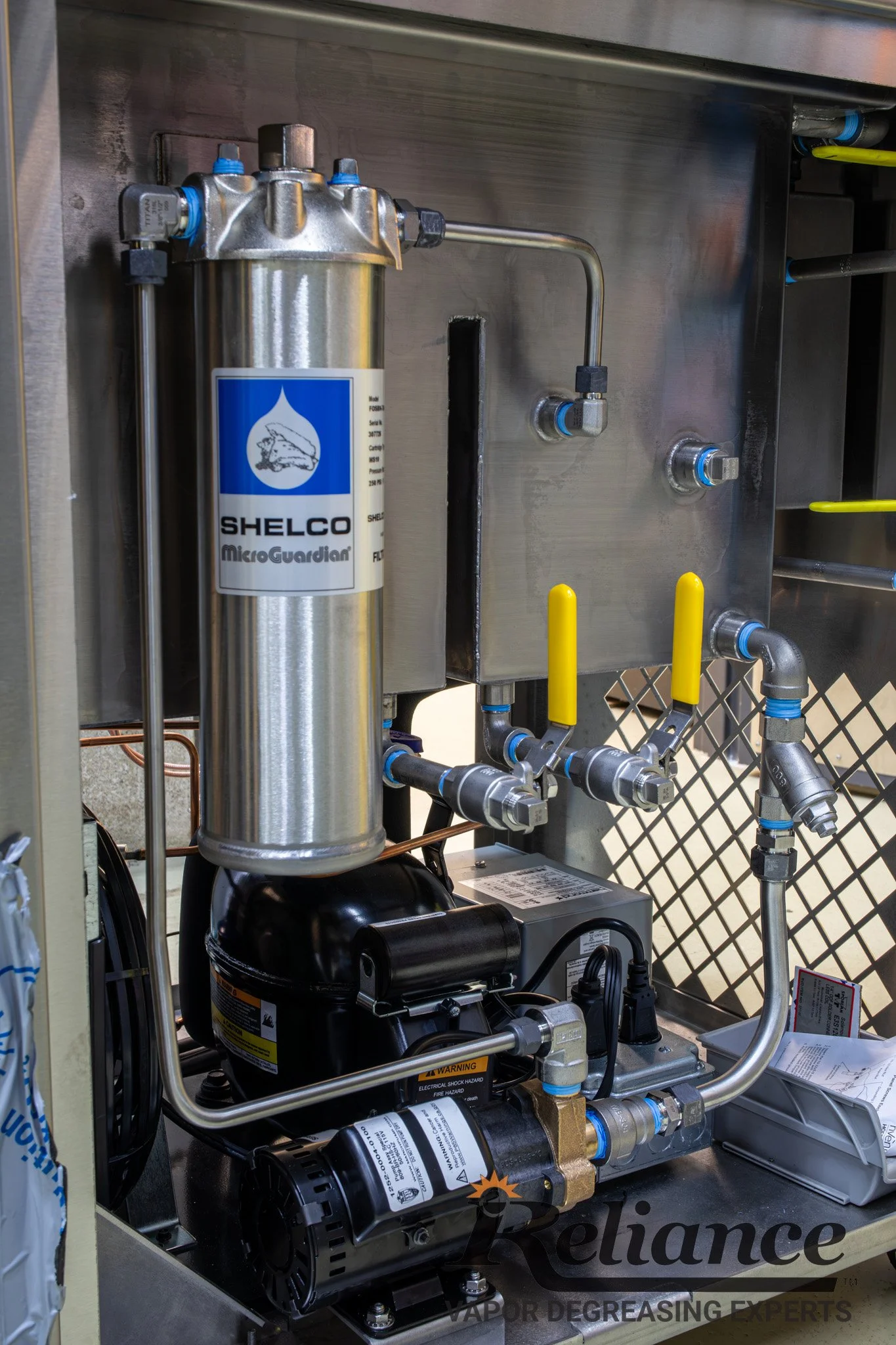

Ultrasonic Immersion Sump filtration and re-circulation system with mag-drive pump
WATLOW Temperature Safety Limit Controls - Digital display on control panel; temperature set point as well as actual temperature – SVC (Safety Vapor Control), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)
Low-Level Float Safety System - Ensures the minimum amount of solvent in boil sump for proper system operation.
Comprehensive Indicator Light System on Control Panel - Includes solvent low level float fault indicator lights (for easy identification of operating fault conditions). “Spray Ready” indicator light and zero coil “Defrost” indicator light, illuminated on/off switches for easy identification of system condition “Heat”, “Filtration”, Main Power”, “Refrigeration” and “Low-Temp Refrigeration”.
Horizontal Slide Lid - for solvent containment. Optional power roll-top available.
Casters - for easy movement.
Simple In and Out Electric Immersion Heater - “Screw-In” type elements for easy replacement.
Two Sump Access Clean-Out Doors - Boil sump and immersion sump access for ease of maintenance through the clean-out door rather than over the tank top
One (1) stainless steel workbasket
Comprehensive 1-Year Manufacturer’s Warranty
ULTRA™ 2012 LE Operator’s Manual
Primary and Sub-Zero Coils Running Standard Refrigerant
Simple Control Safety Panel
ULTRA™ 2012 LE Benefits
Simple engineering and stoutness of design for durability and ease-of-maintenance
Excellent training - start-up, shut down, maintenance and good solvent cleaning work practices
Easy to support in the field with accessible heating elements, clear temperature read-outs, sophisticated indicator light system, and updated refrigeration systems using standard refrigerant
Cost effective operation and maintenance
Compact footprint
Effective with a variety of non-flammable solvents, including chlorinated, brominated and fluorinated
State-of-the-art engineering based on a best practices for simplicity, field supportability and reliability
Minimal Solvent Emissions and Reduced Operating Costs due to NESHAP Compliant coils

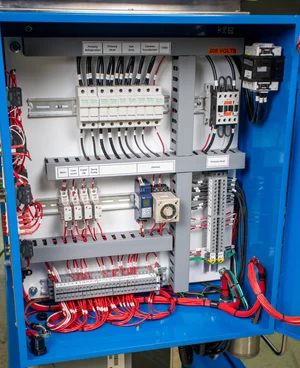

Electrical Panel with Sophisticated Temperature Display and Indicator Light SystemULTRA™ 2012 LE Options
Electric horizontal slide lid
Additional baskets
Solvent Containment Spill Tray
Increased Ultrasonic Power
Choice of vapor degreasing solvent including EnTron™, EnTron-Aero™, GenTech™ and AeroTron™
Optional Vertical Basket Handling Elevator (BHE) for loads up to 35 lbs.
ULTRA™ 2012 LE: Compatible with Non-Flammable Solvents
Simple Change over - The ULTRA™ 2012 LE is engineered to be compatible with a variety of solvents and in most cases a simple clean out and change of temperature settings is all that is required.
120% Freeboard — helps with vapor containment - so using chlorinated solvents like TCE, TCA, MCL and PERC is still possible.
Sub-Zero refrigeration coil - in addition to the primary refrigeration system, makes using brominated solvents like GenTech™, EnTron™ and EnTron-Aero™ or Modernized chemistries solvents such as AeroTron - an economical alternative.
Manual or Automated Slide-Lid - provides additional solvent containment for the new generation of fluorinated solvents like AeroTron™ and helps reduce evaporation.
